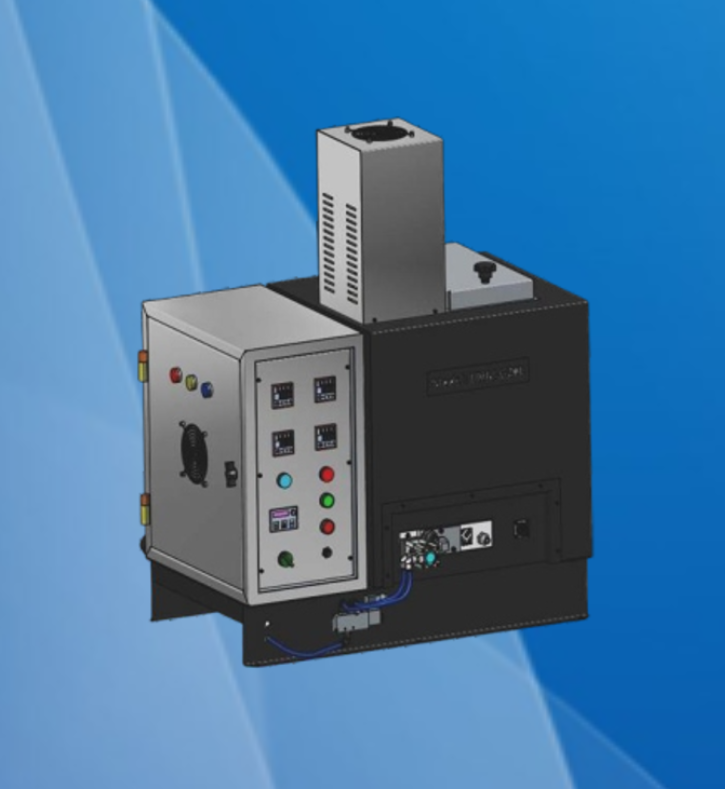

| SPECIFICATION MODEL | MODEL UHM-G20L |
|---|---|
| Type | Gear Pump Applicator |
| Tank Capacity | 20 Litres |
| Power Requirement | 3 φ, 50 Hz, 400 Volts AC |
| Heating Load | 10 KW |
| Hose / Gun Connections | 1 Set |
| Maximum Operating Temperature | 200° C |

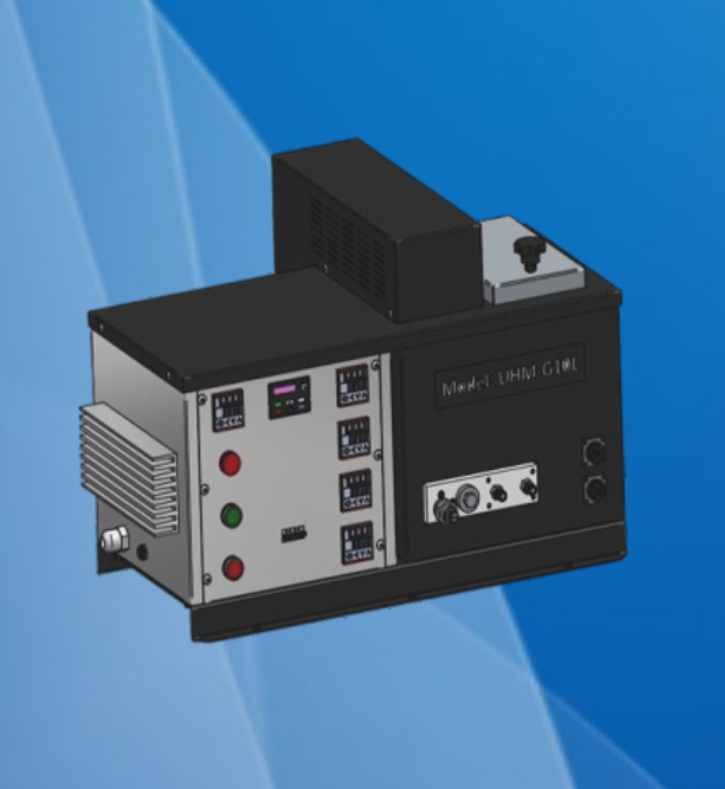

| SPECIFICATION MODEL | MODEL UHM-G10L |
|---|---|
| Type | Gear Pump Applicator |
| Tank Capacity | 10 Litres |
| Power Requirement | 1 φ, 50 Hz, 220 Volts AC |
| Heating Load | 4.5 KW |
| Hose / Gun Connections | 1- 2 Sets |
| Maximum Operating Temperature | 200° C |

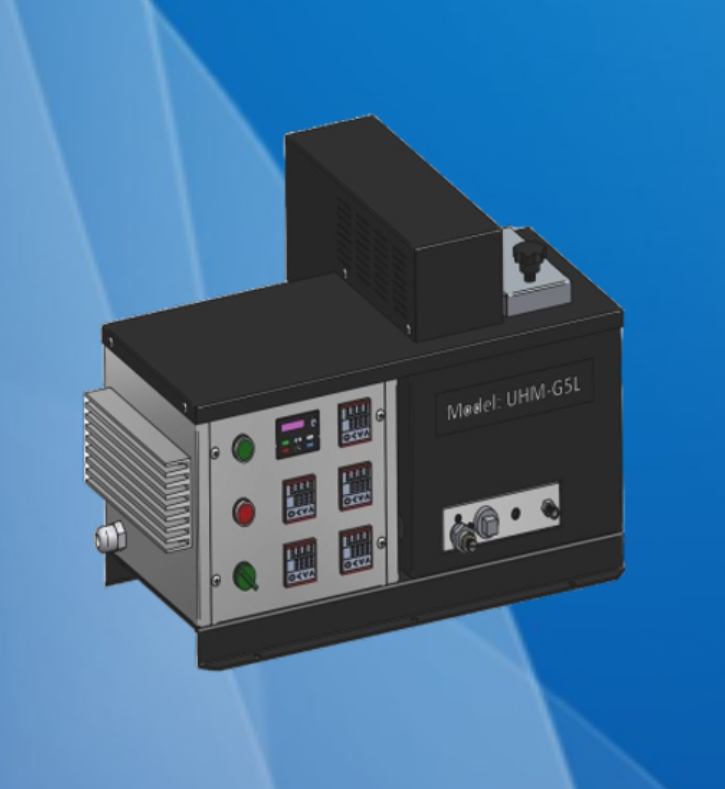

| SPECIFICATION MODEL | MODEL UHM-G5L |
|---|---|
| Type | Gear Pump Applicator |
| Tank Capacity | 5 Litres |
| Power Requirement | 1 φ, 50 Hz, 220 Volts AC |
| Heating Load | 3.5 KW |
| Hose / Gun Connections | 1- 2 Sets |
| Maximum Operating Temperature | 200° C |

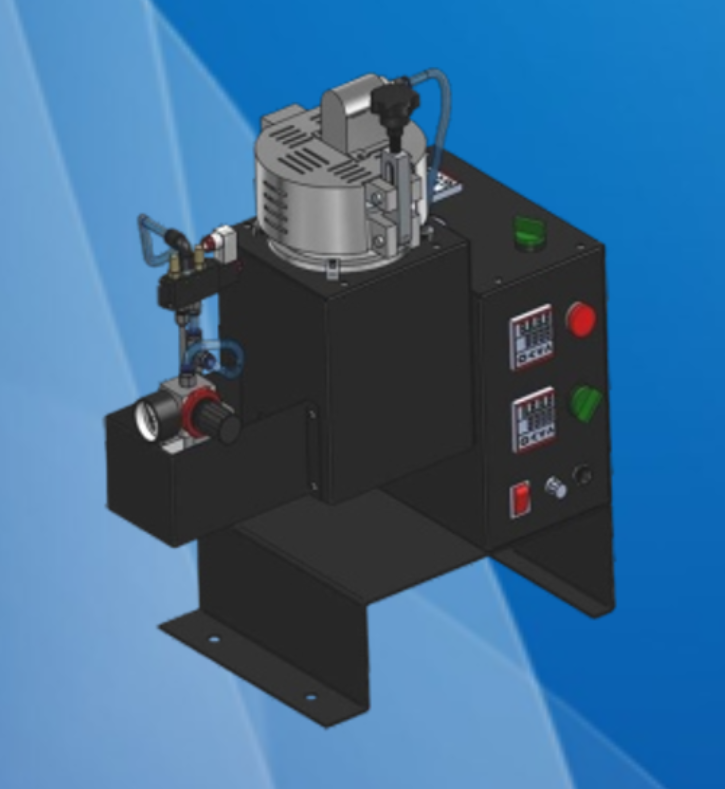

| SPECIFICATION MODEL | MODEL UHM-A1 | MODEL UHM-A1S |
|---|---|---|
| Type | Air Operated | Air Operated |
| Tank Capacity | 1 Litres | 1 Litres |
| Application | Lines / Dots | Lines / Dots / Spray |
| Power Requirement | 1 φ, 50 Hz, 220 VAC | 1 φ, 50 Hz, 220 VAC |
| Heating Load | 800 Watts | 1,100 Watts |
| Recommended Air Pressure | 4 Kg/cm2 | 4 Kg/cm2 |
